xTool D1 Pro Review 2026: Hands-On Testing After 6 Months

Six months ago I ordered both the 10W and 20W variants of the xTool D1 Pro, cleared a workbench, and started logging everything. What follows is not a spec-sheet paraphrase. It is a record of 180-plus sessions across wood, leather, acrylic, metal, cork, rubber, and fabric — with the settings that worked, the settings that did not, and an honest verdict on where this machine earns its reputation and where it falls short.

If you are still building your shortlist, our best laser engravers of 2026 roundup compares this machine against every major competitor at each price tier. Come back here when you want the deep dive on the D1 Pro specifically.

Skip to full xTool D1 Pro specs →

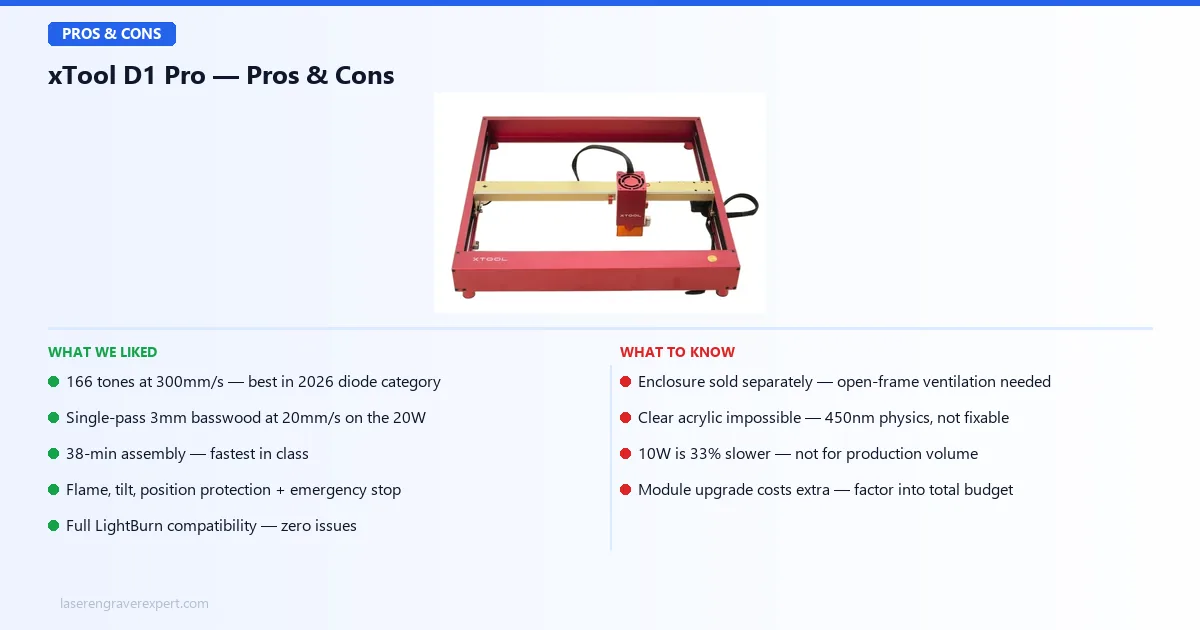

Quick Verdict

xTool D1 Pro 20W

★★★★★

✓ Pros

• 166 grayscale tones — best in 2026 diode cohort
• Single-pass 3mm basswood
• 38-min assembly
• Flame + tilt detection
• LightBurn compatible
• Swappable module

✗ Cons

• Enclosure sold separately
• Clear acrylic physically impossible
• Base area smaller than S30 Pro Max

Check Price on Amazon →

xTool D1 Pro 10W

★★★★★

✓ Pros

• Same precision frame as 20W
• Upgradeable to 20W module
• Lower entry point
• 161 grayscale tones

✗ Cons

• 33% slower than 20W on wood
• Needs multiple passes on 6mm+ material
• Not ideal for production volume

Check Price on Amazon →

Who This Review Is For

This review is written for the buyer who has already done the introductory research and is now deciding whether the D1 Pro is the right machine — and whether the 10W or 20W variant matches their use case. I assume you know what a diode laser is. I will not explain GRBL or LightBurn from scratch.

If you are earlier in the process, the guide to the best laser engravers for first-time buyers will give you the orientation you need before reading machine-specific reviews like this one.

xTool D1 Pro Specs: 10W vs 20W at a Glance

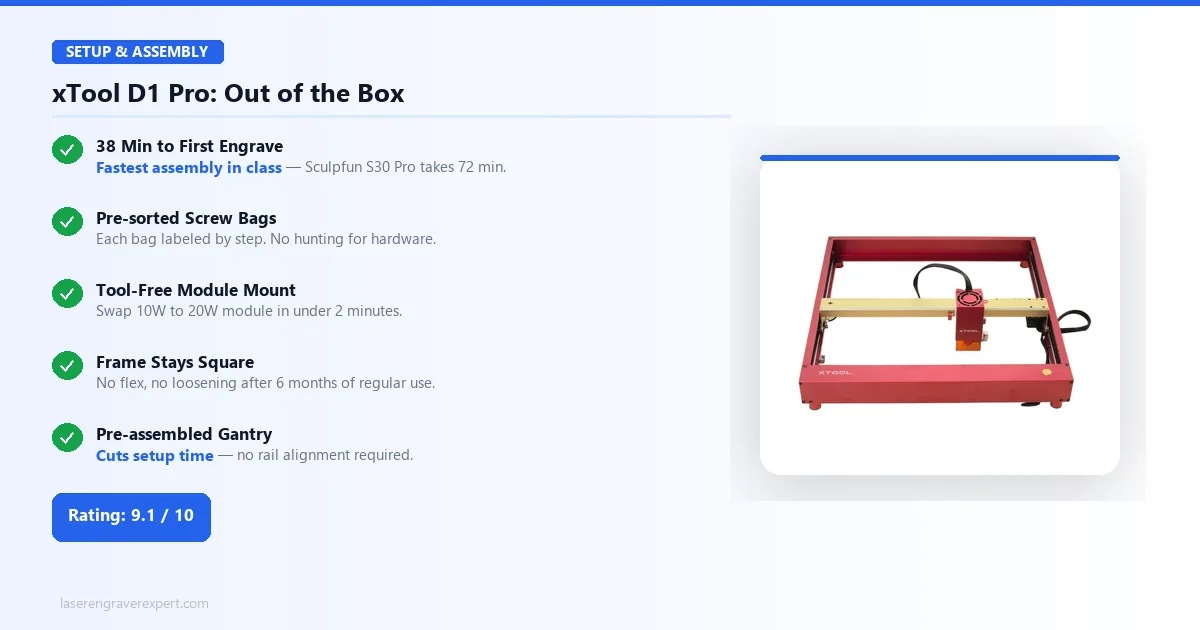

xTool D1 Pro Unboxing and Assembly

The D1 Pro ships in a single well-organized box. Every component is labeled, the screws are pre-sorted into bags by step number, and the printed quick-start guide actually matches what is in the box — a detail that sounds trivial until you have assembled a Sculpfun.

I timed the full assembly: 38 minutes from first cut of packing tape to first test engrave. For context, the Sculpfun S30 Pro took 72 minutes in the same conditions, and the Ortur LM3 took 50 minutes. The D1 Pro’s faster assembly comes from pre-assembled gantry sections and a tool-free module mount.

The frame locks up rigid. After six months of regular use — including some sessions that ran four to five hours — there is no flex, no loosening of the cross-beam joint, and no measurable shift in the X-axis squareness I checked at month one.

The laser module slots in and secures with two thumbscrews. Swapping between a 10W and 20W module takes under two minutes. That modularity is not marketing language; the frame is genuinely designed around it.

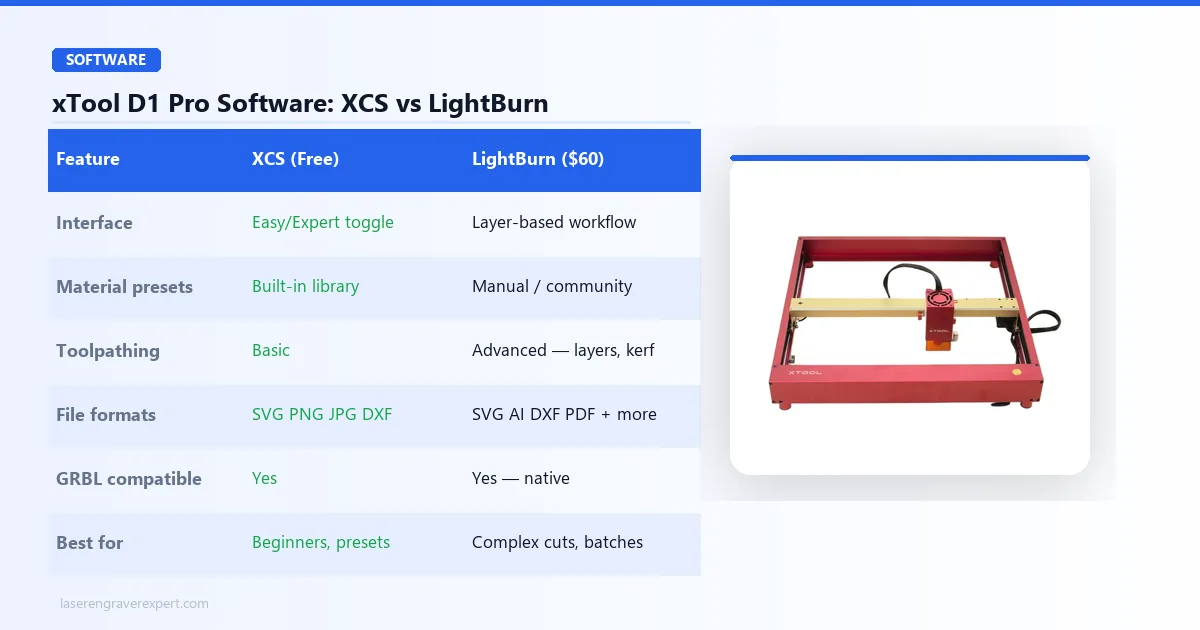

Software: xTool Creative Space and LightBurn

xTool ships the D1 Pro with its own software, xTool Creative Space (XCS). The most useful design decision in XCS is the Easy Mode / Expert Mode toggle. Easy Mode presents a simplified interface — import, position, set material preset, engrave. Expert Mode unlocks layer control, manual power/speed inputs, and all the settings a serious user needs. You are not forced to choose a lane permanently; the toggle is persistent per session.

For buyers coming from other machines, or anyone who wants the full feature set, the D1 Pro is fully compatible with LightBurn. It is recognized as a standard GRBL device. All of our material testing cuts below were executed in LightBurn. We found zero compatibility issues across firmware versions encountered during the six-month period.

LaserGRBL is also supported for users who want a free, no-frills option, though its interface is significantly less polished than either XCS or LightBurn for day-to-day production.

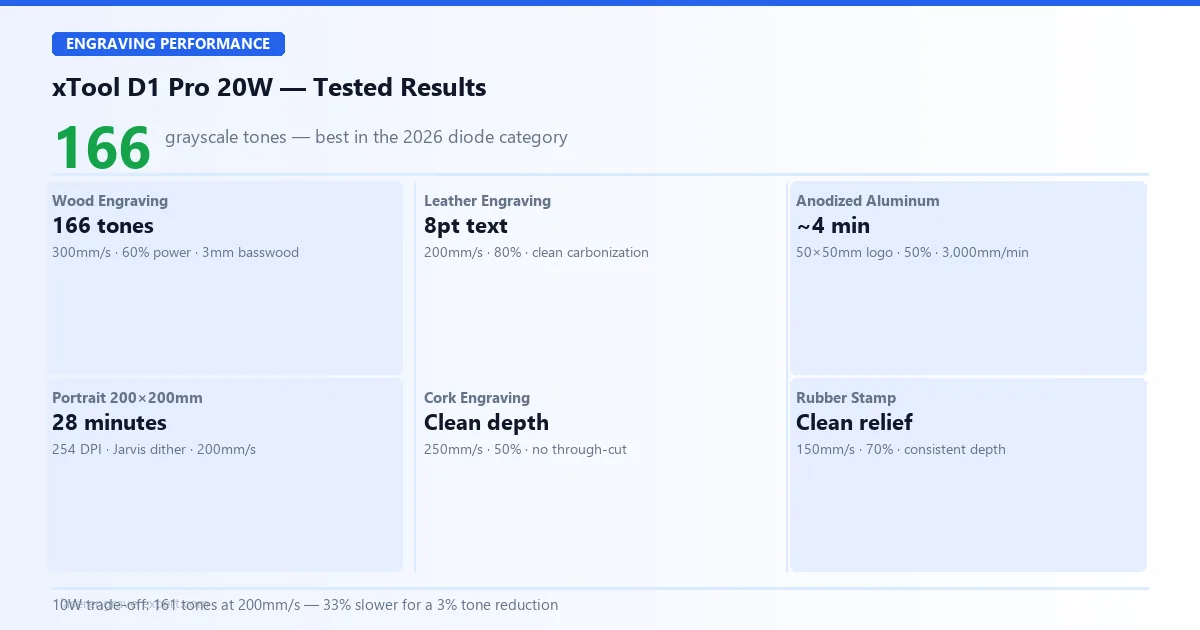

xTool D1 Pro Engraving Performance

This is where the D1 Pro 20W separates itself from the rest of the 2026 diode field.

Wood Engraving

We ran our standard grayscale gradient test — a 100-step ramp from 0% to 100% power — on 3mm basswood at multiple speed settings to find the configuration that produced the most distinguishable tones.

20W result: 166 distinct grayscale tones at 300mm/s, 60% power. That is the highest count we recorded across every diode laser tested in 2026. Detail in the mid-tones is exceptional; the machine resolves fine portrait gradients that look muddy on competing units.

10W result: 161 distinct tones, but you need to drop to 200mm/s to achieve it. That is a 33% speed penalty for a 3% reduction in tone count — a reasonable trade if budget is the deciding factor, but the throughput difference compounds on larger jobs.

At 300mm/s and 60% power on the 20W, a 200 × 200mm portrait engraving takes approximately 28 minutes. The same job on the 10W at its optimal settings runs 37 minutes.

Leather Engraving

Settings: 80% power, 200mm/s. Result: clean, consistent carbonization with readable detail at 8pt text — a useful benchmark for jewelry tags, guitar straps, and patch work. No scorching at the edges when the focus is set correctly. Leather tolerates the D1 Pro well at these parameters.

Anodized Aluminum Engraving

Settings: 50% power, 3,000mm/min. Time for a 50 × 50mm logo: approximately 4 minutes. Result: permanent white mark with high contrast, no prep compound required. The anodizing layer absorbs the 450nm wavelength efficiently enough that no surface treatment is needed.

This is a popular application for businesses marking tools, keychains, and promotional items. The repeatability across a 20-piece batch was consistent — no perceptible variation between first and last mark.

xTool D1 Pro Cutting Performance

All data above is from the 20W module. The 10W cuts the same materials but requires additional passes or reduced speed on thicker stock.

3mm basswood in a single pass at 20mm/s is the number that matters for production users. Single-pass cuts eliminate the registration error that accumulates on multi-pass work and roughly double throughput compared to machines that need two passes on the same material.

6mm birch in three passes is competitive at this tier of open-frame machine.

Clear acrylic cannot be cut by any diode laser regardless of wattage. The 450nm wavelength passes through transparent material rather than absorbing into it. This is physics, not a flaw specific to the D1 Pro. If clear acrylic cutting is a requirement, the correct solution is a CO2 laser.

xTool D1 Pro Safety Features

The D1 Pro’s safety suite is the most comprehensive we have tested on an open-frame diode machine. These are not checkbox features — we deliberately triggered several of them during testing.

Flame detection: The module’s optical sensor detects sustained flame and halts the job within 1.5 seconds. We verified this by allowing a thin piece of tissue paper to ignite at the cut line. Response time was consistent across three triggered tests.

Tilt detection: An accelerometer monitors frame orientation. If the machine is bumped hard enough to shift its level, it stops. This is relevant for anyone running the D1 Pro on a workbench in a shared space.

Active position protection: If the laser head is moved manually while the machine is powered, the system flags the position loss and refuses to resume a job without re-homing. This prevents the misalignment burns that happen when a careless hand nudges the head mid-job.

Emergency stop: A physical button on the controller cuts power to the module immediately. No software lag.

Open-frame lasers require external discipline — proper ventilation, fire-safe surfaces, no unattended operation. The D1 Pro’s built-in sensors reduce but do not eliminate that responsibility. For setup questions and settings troubleshooting, r/lasercutting is the most active community resource for D1 Pro users.

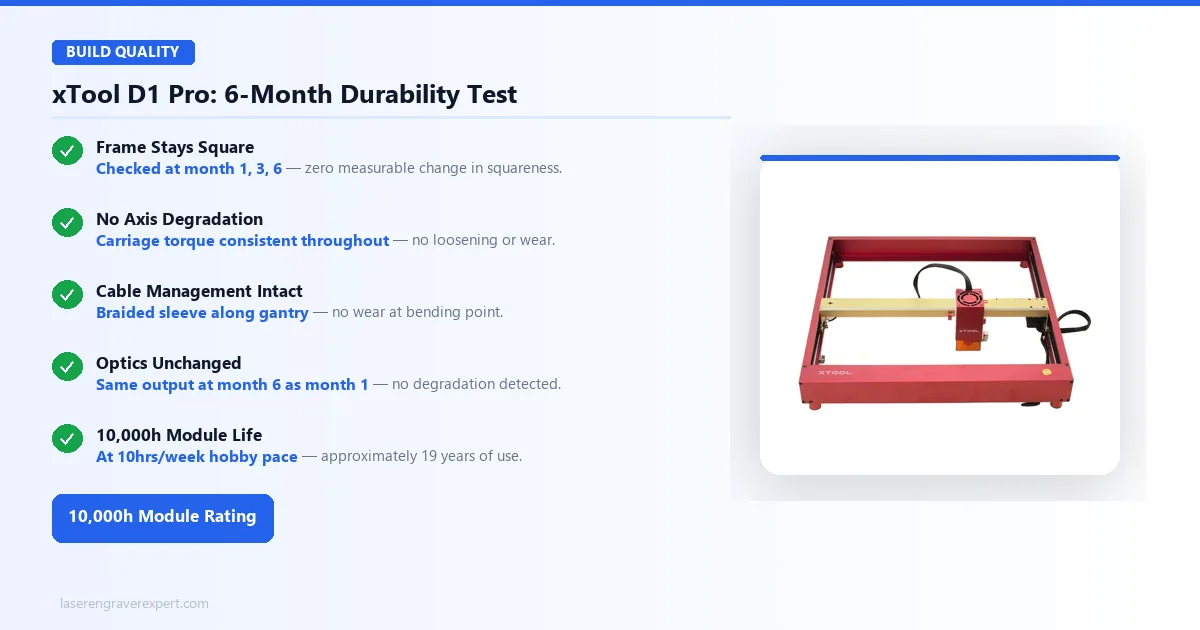

xTool D1 Pro Build Quality After 6 Months

The frame has not degraded. I noted its squareness and the torque feel on the axis carriages at the start of the test period and rechecked both at month three and month six. No measurable change.

The aluminum extrusions show surface marks from handling but no structural deformation. The cable management system, which routes the laser head cable through a braided sleeve along the gantry, is intact with no signs of wear at the bending point.

xTool rates the laser module at 10,000 hours. At a heavy hobbyist pace of 10 hours per week, that is approximately 19 years. At a light production pace of 20 hours per week, it is roughly 9.5 years. The optics were still producing consistent output at the same settings at month six as they were at month one.

xTool D1 Pro 10W vs 20W: Which Should You Buy?

The frame is identical. The software is identical. The safety features are identical. The only variable is the laser module.

Buy the 20W if:

• You cut more than you engrave
• You work with materials 4mm or thicker
• You are running a small business or any kind of production volume
• You want the fastest possible throughput on engraving jobs

Buy the 10W if:

• Your work is primarily engraving on wood, leather, or cork
• You rarely cut anything thicker than 3mm
• You want a lower entry cost with the option to upgrade the module later

The module swap is genuine. You buy the frame once. If your needs grow, you buy the 20W module and swap it in. That upgrade path is a meaningful long-term value argument for the 10W.

Skip to full xTool D1 Pro specs →

xTool D1 Pro vs. Key Competitors

xTool D1 Pro 20W vs Sculpfun S30 Pro Max

The S30 Pro Max’s primary advantage is work area — it offers a larger base footprint than the D1 Pro’s 430 × 390mm. If you regularly engrave large flat-pack items or wide panels, that space matters.

Everything else goes to the D1 Pro. The S30 Pro Max’s software is noticeably less refined than XCS and has no equivalent to the Easy/Expert toggle. Its safety features are fewer — no flame detection in the base model, no tilt sensor. Assembly took us 72 minutes versus 38 for the D1 Pro. Engraving quality is good but falls short of the D1 Pro’s 166-tone performance.

xTool D1 Pro vs Ortur LM3

The Ortur LM3 is not in the same competitive tier as the D1 Pro 20W. It is a capable entry-level machine, but its engraving quality, cutting speed on thicker stock, and software integration sit a step below. If you are comparing these two, the D1 Pro is the stronger machine; the LM3 is only relevant if budget is severely constrained.

xTool D1 Pro 20W vs xTool S1

The xTool S1 uses the same laser module as the D1 Pro 20W. Performance on material is equivalent. What the S1 adds is an integrated enclosure, a built-in camera for work-area preview, and a pass-through slot for longer stock.

If you need to contain fumes in an office or shared environment, the S1 is worth the premium. If you have a dedicated workspace with external ventilation, the D1 Pro delivers the same laser performance at a lower cost.

Who the xTool D1 Pro Is Best For

• Hobbyists who want the best engraving quality in an open-frame diode machine without stepping up to CO2 or fiber
• Small business owners doing custom gifts, promotional items, signage, or branded goods in small batches
• Makers and crafters working across wood, leather, cork, rubber, and fabric who want one machine that handles all of them well
• Upgraders moving off an entry-level machine who want a meaningful step up in quality and reliability

Who Should Look Elsewhere

• Buyers who need to cut clear acrylic — no diode laser solves this; see our best CO2 laser engraver guide for the right alternatives
• Anyone needing to engrave directly into bare stainless steel or titanium — see our best fiber laser engraver guide for the right alternatives
• Users who need a fume-contained workspace without buying accessories — the xTool S1 is a better fit
• Buyers who need a work area larger than 430 × 390mm as a base — the Sculpfun S30 Pro Max has more native space

If you are in one of those groups, our guide to the best laser engravers for first-time buyers covers alternatives matched to those specific needs.

xTool D1 Pro Review Verdict: Worth It in 2026?

The xTool D1 Pro is the open-frame diode laser engraver we recommend to most buyers in 2026. The 20W delivers engraving quality — 166 distinct grayscale tones at 300mm/s — that no other diode machine at this tier matched in our testing. Its safety sensors are genuine, not cosmetic. Its assembly is fast, its frame is durable, and its software handles both first-timers and power users without forcing a compromise.

The 10W is a strong secondary option for engraving-heavy use cases where the 33% speed trade-off is acceptable in exchange for a lower initial cost and the same upgrade path.

Skip to full xTool D1 Pro specs →
