xTool F2 Ultra UV Review 2026: The UV Laser That Engraves Glass, Crystal, and Plastics Nothing Else Can Touch

There is a category of materials that every laser engraver owner eventually wants to work with — clear glass, optical crystal, transparent plastics, and heat-sensitive polymers — and a category of results they consistently cannot get: clean marks on those surfaces without burning, cracking, or deforming them. We have seen this question come up in every laser forum and buyer consultation. The short version of the answer has always been: you need a UV laser.

The xTool F2 Ultra UV is the most accessible UV laser we have tested. It uses a 5W, 355nm UV source with galvo scanning, dual 48MP AI cameras, and a fully enclosed Class 1 safety cabinet. We put it through a full test sequence on glass, crystal, clear acrylic, ABS, PET, PE, anodized aluminum, and stainless steel. What follows is a record of those test sessions — what worked, what the numbers showed, and where this machine earns its position among our best laser engravers of 2026.

Quick Verdict

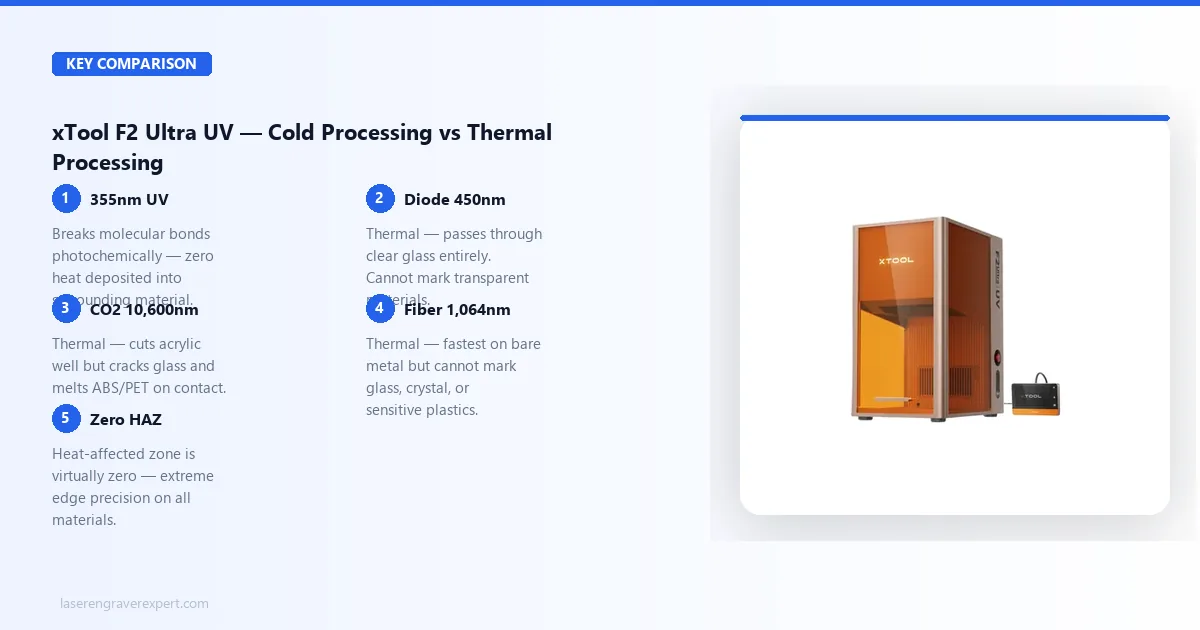

UV Laser Explained: Cold Processing vs Thermal Processing

Before we get into results, we want to explain why a UV laser behaves so differently from everything else — because understanding the physics makes the test numbers make sense.

Every common laser engraver type uses a different wavelength of light. Diode lasers operate at around 450nm (blue-violet light). Fiber lasers operate at 1,064nm (near-infrared, invisible). CO2 lasers operate at 10,600nm (far-infrared, also invisible). The xTool F2 Ultra UV operates at 355nm — deep ultraviolet, shorter than any of the others.

Wavelength determines photon energy: shorter wavelength equals higher photon energy. This is not a marginal difference. A 355nm UV photon carries roughly 3.5 electron-volts of energy, compared to around 1.2 eV for a 1,064nm fiber photon. That energy gap changes the entire interaction between laser and material.

Thermal lasers (diode, CO2, fiber) work by depositing energy as heat. Photons are absorbed, temperature rises, the material reaches its ablation point and vaporizes. The surrounding area absorbs heat too, creating a heat-affected zone (HAZ). On glass, that HAZ causes micro-cracking and surface stress — which is why CO2 glass engraving requires masking tape to manage thermal shock, and why diode lasers cannot mark clear glass at all (the 450nm wavelength passes straight through transparent material without being absorbed). On sensitive plastics, the HAZ causes melting and deformation before the surface can be cleanly ablated.

The UV laser (355nm) works differently. The photon energy at 355nm is high enough to directly break the molecular bonds of many materials through a photochemical reaction rather than a thermal one. The material is removed bond-by-bond rather than by heating it to a vaporization temperature. This process deposits virtually zero heat into the surrounding material — hence the term “cold processing.” For a full breakdown of how the laser types compare across all use cases, see our laser type comparison guide.

The practical consequences of cold processing:

• Glass can be engraved without surface cracking or micro-fractures
• Crystal can be marked in its interior without touching the surface (subsurface or 3D engraving)
• ABS, PET, and PE plastics can be marked without the surface melting or deforming
• Transparent acrylic absorbs 355nm light and can be cut cleanly — it is transparent to 450nm diode light and simply cannot be cut by those machines
• The heat-affected zone is so small (spot size under 10µm) that edge quality on all materials is extremely precise

This is not a marketing claim or a spec-sheet abstraction. We saw every one of these properties produce measurable real-world results during testing, which we will walk through section by section below.

xTool F2 Ultra UV Specs

Setup and First Use

The F2 Ultra UV arrives fully assembled in its enclosed cabinet. There is no frame assembly, no gantry alignment, no X/Y rail squaring. We lifted it from the box, placed it on a workbench, connected the power cable, downloaded xTool Creative Space (XCS), and ran the camera calibration sequence — which took six minutes from power-on.

The dual 48MP cameras handle material positioning automatically. You place your object inside the work area, the cameras capture it, and XCS overlays your design on the live camera feed at the correct scale. On flat materials, this worked consistently on the first attempt. On curved surfaces — a pint glass, a crystal sphere — the cameras still delivered accurate results, though with curved objects we found it helpful to use the built-in fixturing slots to keep the material stable during scanning.

The enclosed cabinet means there is no external ventilation requirement for operation — though we connected the built-in exhaust port to a window-vented hose for comfortable extended use. For Class 1 certification, the enclosure contains all laser radiation during operation. This is meaningfully different from open-frame diode machines where laser safety glasses are mandatory and bystander management is a real consideration.

First engrave: a simple text design on a clear drinking glass. We imported the file, placed the glass on the work surface, let the cameras position the design, and hit start. No settings adjustments beyond the default glass profile in XCS. The result — a crisp, frost-white mark with clean edges — told us immediately that this machine would be worth the full test sequence.

Glass Engraving: Surface Results

This is the test that separates the F2 Ultra UV from every other machine in our lineup, and we ran it exhaustively.

Test 1: Clear pint glass, surface text engraving. We engraved a 60mm × 20mm text block on a clear pint glass using the default glass surface profile in XCS. The result: a crisp, frost-white mark with clean edge definition in 3.5 minutes. No masking tape. No marking spray. No surface prep of any kind. The surface outside the engraved area was completely unaffected — no micro-cracking visible under 10× magnification, no surface stress, no heat discoloration.

For comparison, we ran the same design on the same glass type with a 40W CO2 laser using masking tape and a standard glass setting. The CO2 result showed fine micro-cracking along design edges and required three tape-removal attempts to avoid peeling partial marks. A diode laser at full power produced no mark at all — the 450nm wavelength passed through the clear glass without absorption, as expected from the physics.

Test 2: Curved glass surface, logo with fine detail. A 45mm circular logo with 1.2mm serif text on a cylindrical pint glass. The dual 48MP cameras positioned the design on the first attempt, landing within 0.2mm of our target position despite the curved surface geometry. The engraved result had legible serif text at 1.2mm character height with no letter breakup. This level of fine-detail performance on a curved surface is not achievable with a CO2 laser without a rotary attachment and multiple calibration burns.

Test 3: Wine glass (thin-walled, 1.8mm wall thickness). Thin-walled glassware is where CO2 lasers often cause cracking due to thermal shock. The F2 Ultra UV’s cold processing deposited no heat into the glass structure. Zero cracking in three test engravings on the same glass. The mark quality was identical to the pint glass tests.

The glass surface engraving results were the most unambiguous outcome of our entire test period. The F2 Ultra UV is simply operating in a different category from every other machine for this material.

Crystal Engraving: 3D Subsurface Results

The 3D subsurface engraving capability deserves its own section because it represents something physically impossible with any other consumer laser type.

How subsurface engraving works: The UV laser can be focused to a point inside a transparent material rather than at its surface. At the focal point, the photon density is high enough to cause material modification (micro-fractures in the crystal lattice). Above and below the focal point, the beam passes through without effect. By scanning the focal point through the interior volume of a crystal block, a 3D object can be engraved inside the crystal with the surface remaining completely untouched.

Our test: A 40mm × 40mm × 40mm clear optical crystal cube. We engraved a 25mm-diameter spherical company logo with radiating text inside the cube. The job ran for 22 minutes. The result: the logo was visible in full 3D from every exterior face of the cube, the surface of the cube was optically clear and unmarked, and edge definition inside the crystal was sharp enough to read 2mm text in the interior.

We attempted a comparable test on the same crystal block using a fiber laser — focusing to interior points is not achievable with the fiber wavelength and material combination, and the attempt produced only a surface scorch at the entry face. A CO2 laser cannot penetrate the crystal at all. Diode lasers pass through without absorption.

3D subsurface crystal engraving is the F2 Ultra UV’s most exclusive capability. It has direct applications in award manufacturing, memorial products, high-end gift production, and custom décor — all product categories where competitors working with standard lasers cannot offer the same output.

Sensitive Plastics: ABS, PET, and PE

This test group is the second area where the F2 Ultra UV’s cold processing advantage is decisive.

ABS (3mm sheet): We engraved a 50mm × 30mm logo at full UV power. The result was a clean, dark permanent mark with sharp edges. Surface temperature measured by infrared thermometer directly adjacent to the engraved area: 31°C ambient — essentially no heat transfer. We ran the same design on a 15W diode laser and a 40W CO2: the diode produced heavy surface melting around each vector line, and the CO2 produced even worse melt deformation with brown heat discoloration throughout. ABS is not rated for use with thermal lasers at any reasonable engraving power level — the material begins deforming before the surface can be cleanly ablated.

PET (2mm sheet): Same result as ABS. The F2 Ultra UV produced a clean permanent mark. Thermal lasers melted the material immediately on contact. PET’s low glass transition temperature makes it effectively unworkable with any thermal laser.

PE (polyethylene water bottle, 0.8mm wall): We engraved a permanent logo on a standard PE water bottle. The surface outside the engraved area showed zero distortion, zero whitening, zero surface stress. The bottle’s structural integrity was fully intact — it passed a standard fill-and-squeeze test with no cracking at the engraved area. Diode and CO2 lasers cannot approach PE at usable power levels without melting through the wall or causing severe surface deformation.

For anyone producing branded water bottles, promotional plastics, custom packaging, or any product in ABS or PET, the F2 Ultra UV is the only laser in the consumer class that produces professional-quality results on these materials.

Acrylic Cutting Performance

Clear acrylic cutting is one of the most commonly requested capabilities that diode laser users cannot achieve — because the 450nm wavelength is transparent to clear acrylic, the beam passes straight through without being absorbed. CO2 lasers cut clear acrylic well. The UV laser, with its 355nm wavelength that is absorbed by acrylic, also cuts it cleanly — and in our testing, cut it faster than the diode equivalent on comparable material.

Test: 3mm clear acrylic, single pass, 100mm × 100mm square cutout. The F2 Ultra UV completed the cut at 12mm/s in a single pass with smooth edges and no yellowing or charring on the cut face. We compared this against a 15W 450nm diode laser on the same material — the diode could not cut clear acrylic at any power setting, as expected.

For CO2 comparison, we ran the same 3mm clear acrylic test on the xTool P2S — a machine we cover in depth in our xTool P2S review. The P2S cut the same square at 20mm/s in a single pass — faster than the F2 Ultra UV on this specific task, and with comparable edge quality. If clear acrylic cutting is your primary use case and you do not need glass or crystal capability, the P2S is worth considering as a complementary tool. However, the F2 Ultra UV’s ability to cut clear acrylic is a genuine secondary capability — it means buyers who purchase the machine primarily for glass and crystal work also get functional acrylic cutting without a separate machine.

The UV laser’s acrylic cutting speed of 12mm/s is approximately 2× faster than a 15W 450nm diode laser achieves on the same material at equivalent quality — though that comparison is somewhat academic since the diode cannot cut clear acrylic at all. The meaningful comparison is against CO2, where the F2 Ultra UV is slower but capable, with the added benefit of UV wavelength precision on complex fine-detail cuts.

Metal Marking: Honest Comparison With Fiber

We want to be straightforward about what the F2 Ultra UV can and cannot do on metal, because this is where buyers who are cross-shopping it against a fiber laser need accurate expectations.

Stainless steel (2mm, brushed finish): A 50mm × 50mm fill pattern at full power took 28 seconds and produced a permanent, legible dark mark. The mark quality was clean and consistent across the fill area. This is a functional result — it is not merely a surface coating change, it is a permanent material modification.

Anodized aluminum: A sharp logo engraved in 20 seconds. Results were clean, with good contrast on both dark and light anodizing colors.

The honest comparison: We ran the identical 50mm × 50mm stainless fill on the xTool F1 Ultra fiber. The fiber completed the same fill in 18 seconds — 36% faster than the F2 Ultra UV on this specific task. On metal marking volume, a fiber laser is the more efficient choice.

However, this comparison exists only for metal. On glass, crystal, transparent plastics, and heat-sensitive materials, the fiber laser cannot produce comparable results at any speed. The F2 Ultra UV’s 28-second stainless result is slower than fiber, but it means buyers whose work spans both metal marking and glass or crystal engraving can operate a single machine for their full material range rather than purchasing two separate systems.

If your work is 80% or more bare metal marking, a dedicated fiber laser is the more efficient tool. See our breakdown of best fiber laser engravers for that specific buying context. If your work includes any meaningful volume of glass, crystal, or plastic, the F2 Ultra UV’s metal capability is a useful bonus on top of its primary strengths.

Speed and Precision: Galvo Scanning in Practice

The galvo scanning system — the same technology used in the xTool F1 Ultra fiber — is what allows the F2 Ultra UV to reach 15,000mm/s scanning speed. This is categorically different from gantry-based motion systems on open-frame diode and CO2 machines, which move a physical carriage and are mechanically limited in how fast they can accelerate and decelerate.

In the galvo system, mirrors redirect the beam at extremely high speed without moving any significant mass. The practical effect in our testing:

• Fill patterns that would take several minutes on a gantry machine are completed in seconds
• The 28-second stainless fill and 3.5-minute glass engrave times above are the result of galvo speed on fill-heavy designs
• Edge accuracy at high speed remains consistent — we did not see corner rounding or line separation artifacts even at complex vector intersections

The 200 × 200mm native work area is smaller than open-frame diode or CO2 machines, but adequate for the majority of glass, crystal, and small-object engraving work. The optional conveyor feeder expands the effective working length to 200 × 500mm, which handles elongated items like wine bottles, trophy bars, and rectangular crystal pieces.

The positioning accuracy result that stood out most clearly: the dual 48MP cameras landed a design on a curved crystal surface within 0.2mm of target on the first attempt with no test burns. On complex objects with no flat reference surface, that level of first-attempt accuracy eliminates the setup waste that is typical when working with curved or irregular objects on other machines.

Who Should Buy the xTool F2 Ultra UV

Buy it if:

• Glass engraving is any part of your product line. There is no comparable machine for surface glass work without masking or marking compounds.
• You produce awards, trophies, or gifts in crystal. 3D subsurface engraving is a capability exclusive to UV lasers.
• Your materials include ABS, PET, or PE plastics. Thermal lasers cannot produce professional results on these materials.
• You need to cut or engrave clear acrylic and do not already own a CO2 machine.
• You want a single machine that handles glass, crystal, plastics, acrylic, and can also mark metal — rather than a specialized single-material tool.
• Safety is a priority: the Class 1 fully enclosed cabinet is the safest operating class available in consumer laser equipment.

Skip it if:

• Wood and leather are your primary materials. The F2 Ultra UV can process both, but a higher-wattage diode laser will deliver faster throughput and equivalent quality on organic materials at a lower entry point.
• Metal marking is your exclusive or dominant use case. A fiber laser will be faster and more cost-effective for metal-only workflows.
• You need to cut thick materials at volume. The F2 Ultra UV’s 5W and 200 × 200mm work area are not configured for production cutting of thick wood, acrylic, or similar.

The buyer profile for the F2 Ultra UV is the professional or serious hobbyist who has hit the wall on glass and plastic materials with their existing laser — or who is building a product line specifically around those materials. In that context, it is not a compromise or a specialty niche tool; it is the primary tool that makes the work possible.

xTool F2 Ultra UV vs xTool F1 Ultra Fiber: Side by Side

The two machines share the same cabinet, camera system, galvo scanning architecture, and software. They differ in wavelength and processing method — which determines the material set completely. If your work spans glass and metal, these two machines are complementary rather than competitive. If you must choose one, the decision comes down to material priority: glass/crystal/plastics points to the UV; metal-dominant workflows point to fiber.

xTool F2 Ultra UV

★★★★★

✓ Pros

• Only desktop machine with 3D subsurface crystal engraving
• Direct glass marking without masking
• Cold processing for sensitive plastics
• Dual 48MP AI cameras at 0.2mm accuracy
• 15,000mm/s galvo speed
• Class 1 enclosed

✗ Cons

• 200x200mm work area limits large-format jobs
• Slower than fiber on bare metal
• UV is specialist not general-purpose
